| 型号： | 0876090053 |
| 厂商： | MOLEX INC |
| 元件分类： | 边缘插接连接器 |
| 英文描述： | 168 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER, SOCKET |
| 封装： | ROHS COMPLIANT |
| 文件页数： | 1/2页 |
| 文件大小： | 28K |
| 代理商： | 0876090053 |

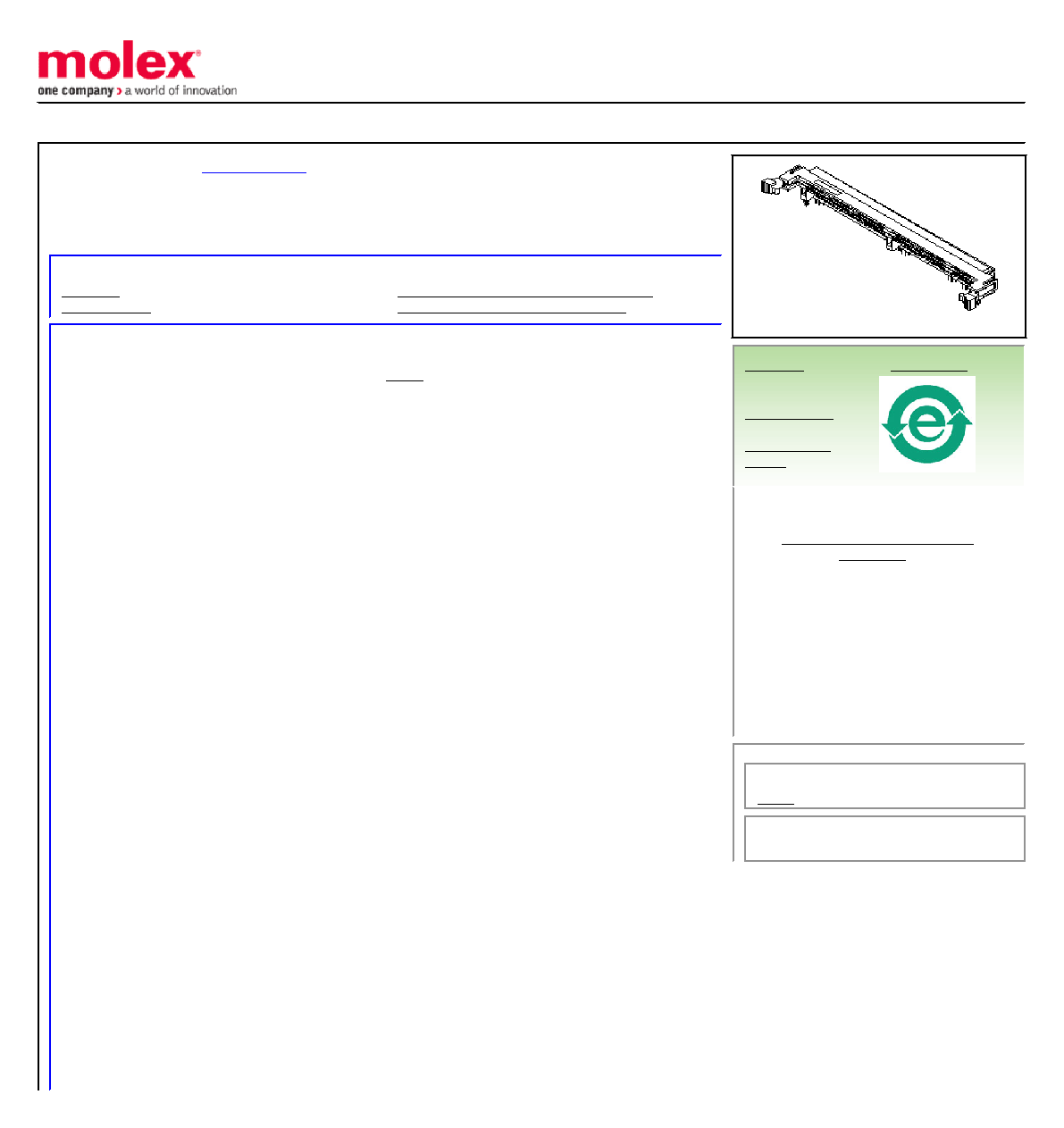

This document was generated on 11/04/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
1.27mm (.050") Pitch DIMM 8-Byte Socket, Right Angle, Multi-Key, 168 Circuits, with
Beveled Metal Pins and Plastic Pegs, with Beige Latches, 2.79mm (.110") Tail Length,
0.38m (15") Gold (Au) Plating, Right Function Key, Leadfree
Documents:
General
Product Family
Memory Module Sockets
Series
Comments
<LI>Latches in Beige Color
Component Type
Memory Module
JEDEC Outline
MO-161
Product Name
DIMM
Physical
Circuits (Loaded)
168
Color - Resin
Black
Color - Resin
Natural
Durability (mating cycles max)
25
Entry Angle
90° Angle (Side Entry)
Function Key
Right
Keying to Mating Part
Yes
Material - Metal
Brass
Material - Metal
High Performance Alloy (HPA)
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
PC Tail Length (in)
0.110 In
PC Tail Length (mm)
2.79 mm
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.050 In
Pitch - Mating Interface (mm)
1.27 mm
Plating min: Mating (in)
15.2
Plating min: Mating (m)
0.38
Plating min: Termination (in)
101.6
Plating min: Termination (m)
2.54
Temperature Range - Operating
-10°C to +85°C
Termination Interface: Style
Through Hole
Electrical
Current - Maximum
1A
Voltage - Maximum
125V
Voltage Key
3.3V
Voltage Key
Center
Material Info
Reference - Drawing Numbers
Product Specification
PS-87609-002
Sales Drawing
SD-87609-001
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Duration at Max.
Process Temperature
(seconds)
30
Lead-free Process
Capability
SMC & Wave Capable
(TH only)
Max. Cycles at Max.
Process Temperature
1
Process Temperature
max. C
240
Search Parts in this Series
87609 Series
Mates With
JEDEC MO-161 modules
