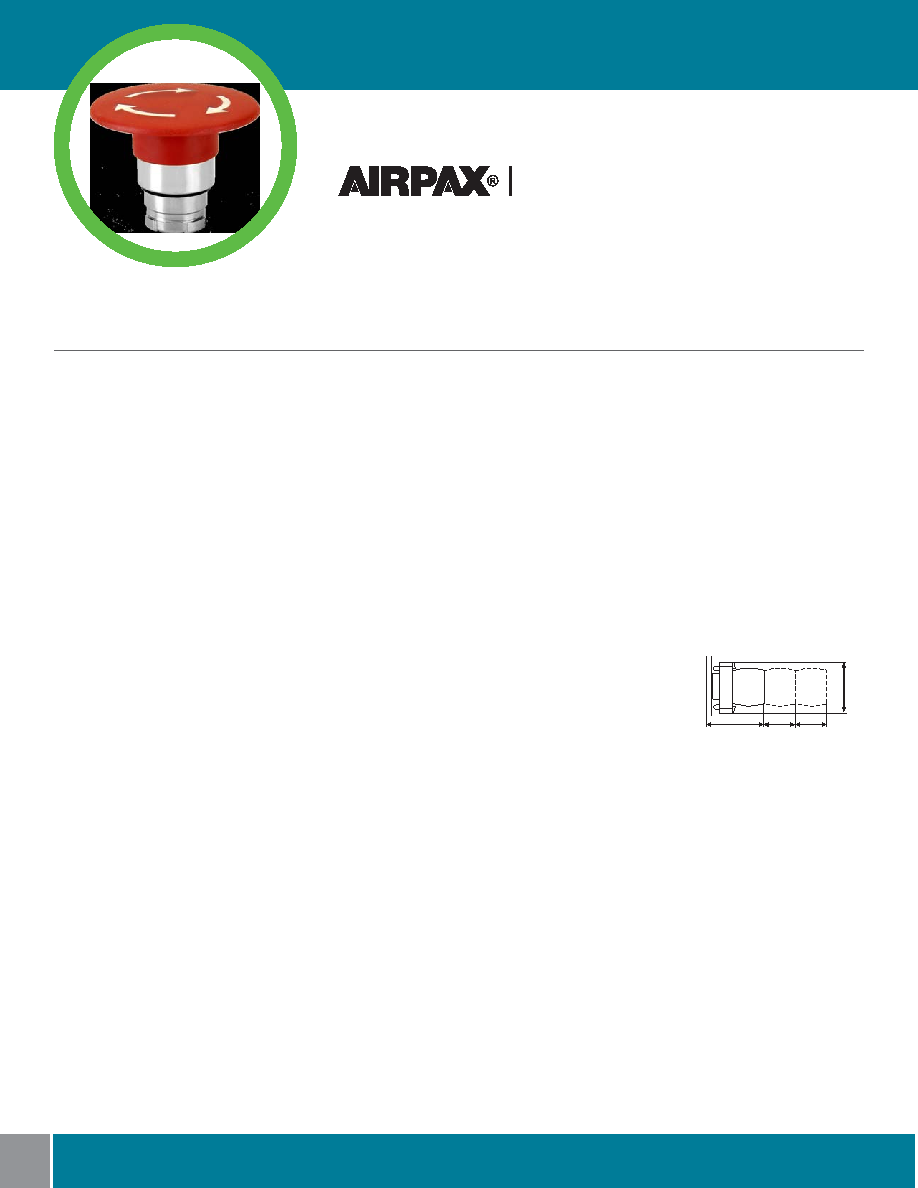

This range of 22.5mm metal series pushbuttons, selector switches, illuminated switches and pilot lights have been designed to provide
the following features:
Economy of space
Aesthetically pleasing
Self wiping contacts
Heavy-duty construction
RoHS compliant
Shrouded terminals
Simple to mount (only need a screw driver)
Very good flame resistance
Mounting method is unaffected by excessive vibration
Use of LEDs for long life
Electric shock protection (grounded unit)
ActUAtoRS
the circular actuators have chrome plated metal bezels and are functionally interchangeable on the different contact elements.
CONTACT ELEMENTS
the contact elements are double break and have self-wiping contacts. the elements are
interchangeable and can be stacked without additional hardware. 1 to 6 elements (No or Nc)
can be used for non-illuminated actuators, whereas, 1 to 4 elements (No or Nc) can be used
for illuminated actuators. Gold NO or NC contact elements for low voltage, low current, < 25mA,
switching applications are available.
ILLUMINAtED pUSHbUttoNS AND pILot LIgHtS
Pilot lights and pushbutton switches are suitable for direct connection through a series resistor, series resistor and diode, using
bayonet cap filament bulb type bA9s as follows:
Supply voltage for direct connection without series resistor . . . . 6V - 130V
Supply voltage through series resistor . . . . . . . . . . . . . . . . . . . . 12V - 415V
Supply voltage through resistor and diode . . . . . . . . . . . . . . . . . 230 VAc
bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Filament, type bA9S with oAL max. 28mm
pilot lights and illuminated actuators are available with integral LEDs, suitable for operating at various voltages; 6V, 12V, 24V, 30V, 48V,
63.3V, 110V, 125V, 230VAc or Dc and 415VAc. pilot lights and illuminated actuators are available with LED bulbs (bayonet cap, bA9s
design with oAL max. 28mm) suitable for operating at various voltages; 24V, 48V, 110V and 230V. on request an extra short circuit
protection consisting of built-in fuse in the LED modules can be provided. pilot lights are available with built -in transformers suitable
for operating at 110VAc, 230VAc input and 6V, 12V and 24V output.
tERMINALS
Contact elements and pilot lights are designed to have shrouded terminals with combination screws.
40X30
43
24
22.5mm Metal Series
control Switches & Signaling Devices
http://airpax.sensata.com/
Control Switches & Signaling Devices - 22.5mm Metal Series
316
INTRODUCTION
