DS2786B
Stand-Alone OCV-Based Fuel Gauge
4
_______________________________________________________________________________________
Note 6: The maximum tHD:DAT has only to be met if the device does not stretch the low period (tLOW) of the SCL signal.
Note 7: This device internally provides a hold time of at least 100ns for the SDA signal (referred to the VIHMIN of the SCL signal) to
bridge the undefined region of the falling edge of SCL.
Note 8: Filters on SDA and SCL suppress noise spikes at the input buffers and delay the sampling instant.
Note 9: CB—total capacitance of one bus line in pF.
ELECTRICAL CHARACTERISTICS: 2-WIRE INTERFACE (continued)
(2.5V
≤ VDD ≤ 4.5V, TA = -20°C to +70°C.)
SDA
SCL
tF
tLOW
tHD:STA
tHD:DAT
tSU:STA
tSU:STO
tSU:DAT
tHD:STA
tSP
tR
tBUF
tR
tF
SSr
P
S

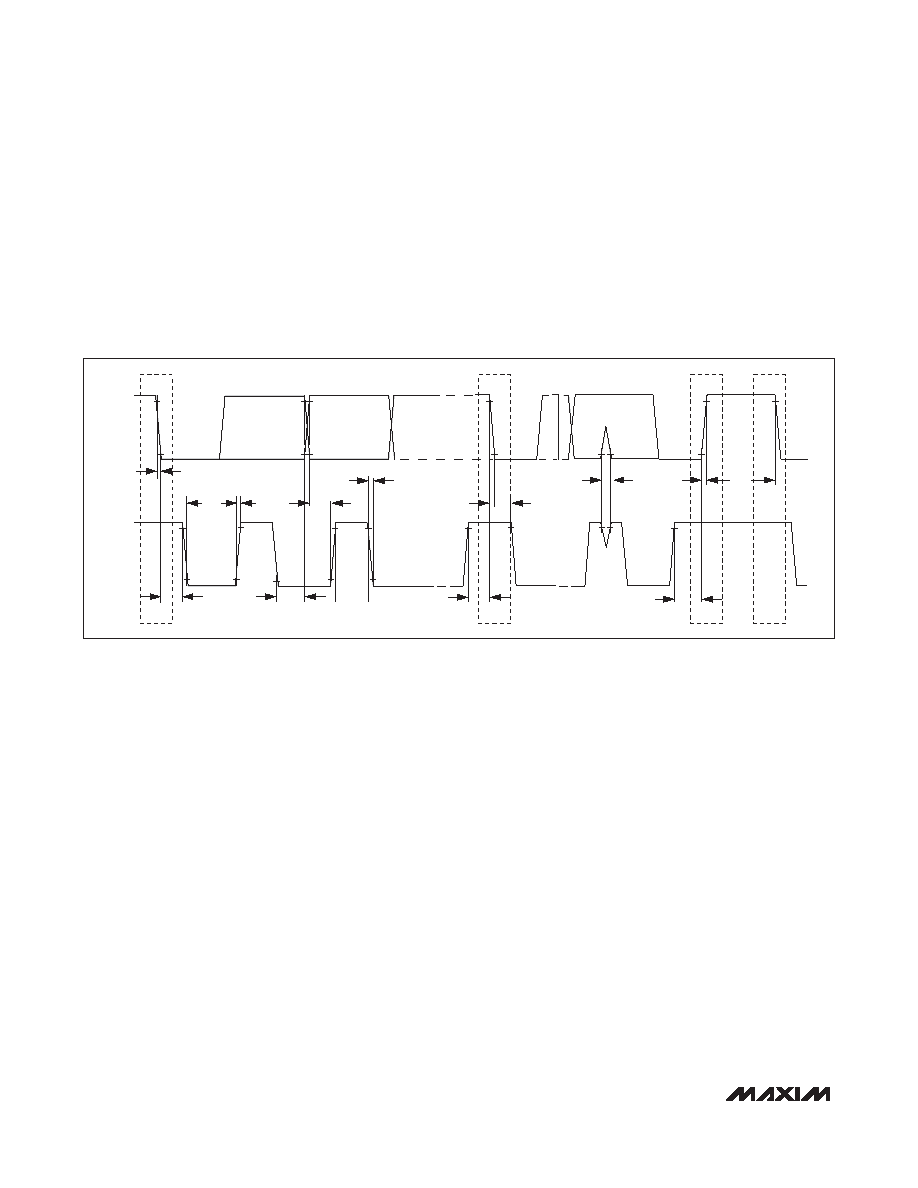

Figure 1. 2-Wire Bus Timing Diagram
