- 您现在的位置：买卖IC网 > PDF目录173109 > FMS6410CS (FAIRCHILD SEMICONDUCTOR CORP) Dual Channel Video Drivers with Integrated Filters and Composite Video Summer PDF资料下载
参数资料
| 型号： | FMS6410CS |
| 厂商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分类： | 音频／视频放大 |
| 英文描述： | Dual Channel Video Drivers with Integrated Filters and Composite Video Summer |
| 中文描述： | 2 CHANNEL, VIDEO AMPLIFIER, PDSO8 |
| 封装： | SOIC-8 |
| 文件页数： | 4/9页 |
| 文件大小： | 110K |
| 代理商： | FMS6410CS |
FMS6410
DATA SHEET
4
REV. 2a February 2004

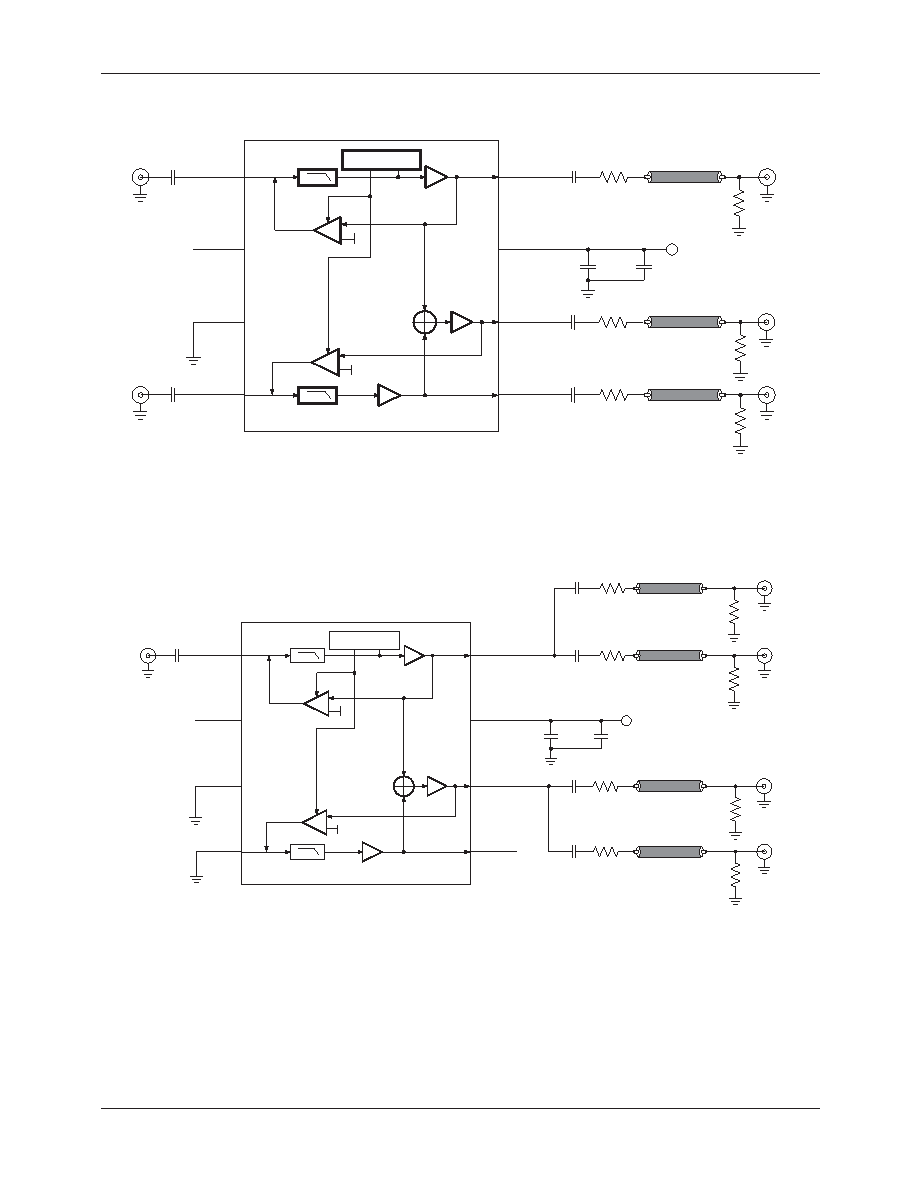

Typical Applications
Figure 1. Typical Configuration
Figure 2. One Input to Four Output Distribution Amplifier Configuration
YIN
1
DNC
(Do Not Connect)
2
3
GND_VIDEO
4 CIN
YOUT
VCC_VIDEO
CVOUT
COUT
8
7
6
5
FMS6410
SYNC STRIP, REF,
AND TIMING
gM
6dB
YOUT
YIN
75
75
220F
Video Cable
+5.0V
1V
6dB
CIN
0.1F
COUT
0.1F
1F
220F
CVOUT
75
75
75
75
gM
YIN
1
DNC
(Do Not Connect)
2
3
GND_VIDEO
4 CIN
YOUT
VCC_VIDEO
CVOUT
COUT
8
7
6
5
FMS6410
SYNC STRIP, REF,
AND TIMING
gM
6dB
YOUT
75
75
220F
Video Cable
+5.0V
1V
6dB
0.1F
YOUT
0.1F
1F
220F
YOUT
75
75
220F
Video Cable
75
75
75
75
gM
