2006 California Micro Devices Corp. All rights reserved.
2
490 N. McCarthy Blvd., Milpitas, CA 95035-5112
●
Tel: 408.263.3214
●
Fax: 408.263.7846
●
www.cmd.com 05/01/06

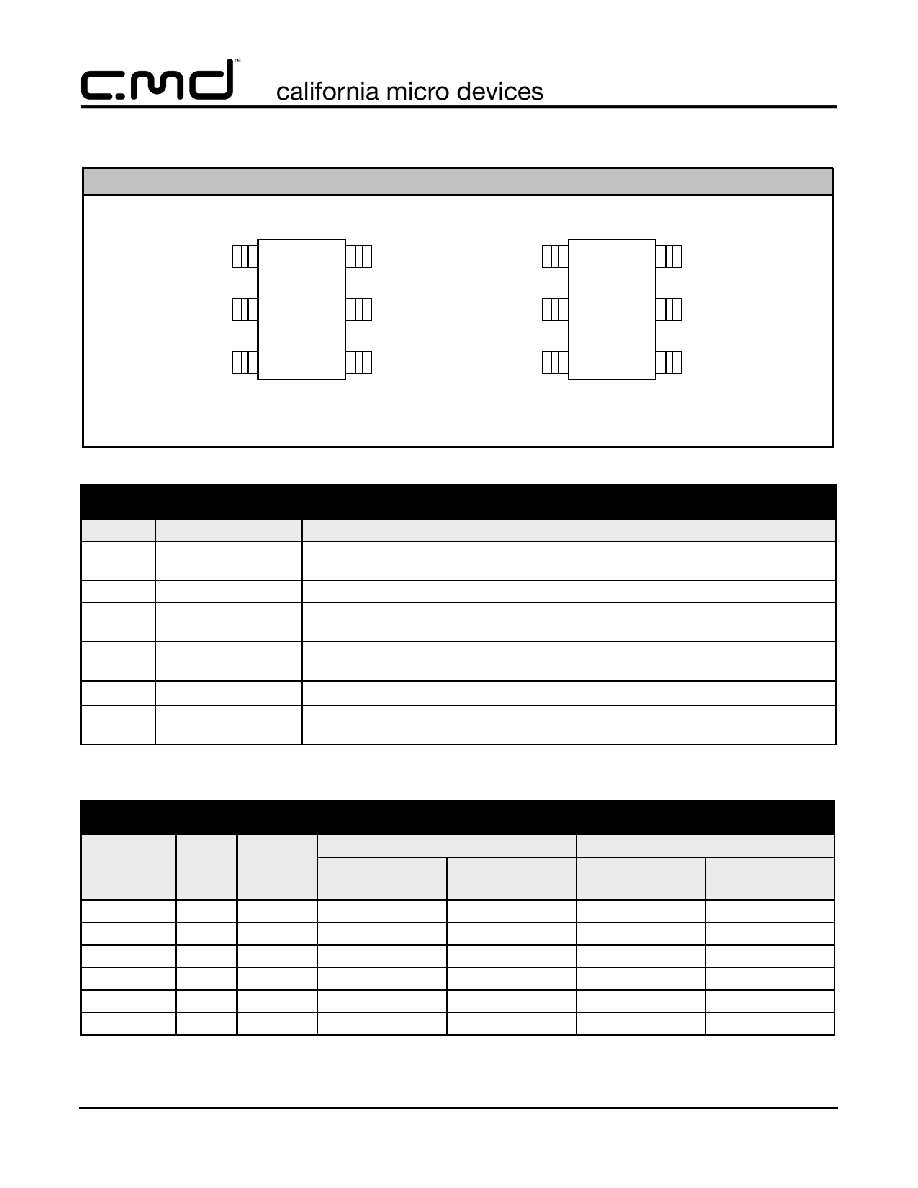

PACUSB-U1/U2/U3
Ordering Information
Note 1: Parts are shipped in Tape & Reel form unless otherwise specified.
PIN DESCRIPTIONS
PIN
NAME
DESCRIPTION
1
D1_i
The USB Controller side of the D+ or D- bidirectional transmission line of the differential
pair defined by USB standards.
2
GND
The ground reference for the PACUSB-U1/U2/U3 device.
3
D2_i
The USB Controller side of the D- or D+ bidirectional transmission line of the differential
pair defined by USB standards.
4
D2_c
The connector side of the D- or D+ bidirectional transmission line of the differential pair
defined by USB standards.
5V3.3
The 3.3V supply voltage for the PACUSB-U1/U2/U3 device.
6
D1_c
The connector side of the D+ or D- bidirectional transmission line of the differential pair
defined by USB standards.
PACKAGE / PINOUT DIAGRAMS
Note: Drawings are not to scale.
6-pin SC70
6-pin SOT23
D1_i
GND
D2_i
D1_c
V3.3
D2_c
D1_i
GND
D2_i
D1_c
V3.3
D2_c
1
2
6
5
3
4
UUx/
1
2
6
5
3
4
UUxY/
UxYR
UxR
PART NUMBERING INFORMATION
R1 Value (
Ω)
Pins
Package
Standard FInish
Lead-free Finish
Ordering Part
Number1
Part Marking
Ordering Part
Number1
Part Marking
15
6
SC70-6
PACUSB-U1
UU1
PACUSB-U1R
U1R
15
6
SOT23-6
PACUSB-U1Y6
UU1Y
PACUSB-U1Y6R
U1YR
33
6
SC70-6
PACUSB-U2
UU2
PACUSB-U2R
U2R
33
6
SOT23-6
PACUSB-U2Y6
UU2Y
PACUSB-U2Y6R
U2YR
22
6
SC70-6
PACUSB-U3
UU3
PACUSB-U3R
U3R
22
6
SOT23-6
PACUSB-U3Y6
UU3Y
PACUSB-U3Y6R
U3YR
