参数资料
| 型号： | S108T02F |
| 厂商： | Sharp Microelectronics |
| 文件页数： | 4/13页 |
| 文件大小： | 0K |
| 描述： | RELAY SSR 120VAC 8A ZC 4-SIP |
| 产品目录绘图： | S(108, 202)T02F Circuit |
| 标准包装： | 25 |
| 系列： | S108 |
| 电路： | SPST-NO（1 Form A） |
| 输出类型： | AC，过零 |
| 负载电流： | 8A |
| 输入电压： | 1.2VDC |
| 电压 - 负载： | 0 ~ 120 V |
| 安装类型： | 通孔 |
| 端接类型： | PC 引脚 |
| 封装/外壳： | 4-SIP |
| 供应商设备封装： | 4-SIP |
| 包装： | 管件 |
| 继电器类型： | 继电器 |
| 产品目录页面： | 2634 (CN2011-ZH PDF) |
| 其它名称： | 425-2396-5 |

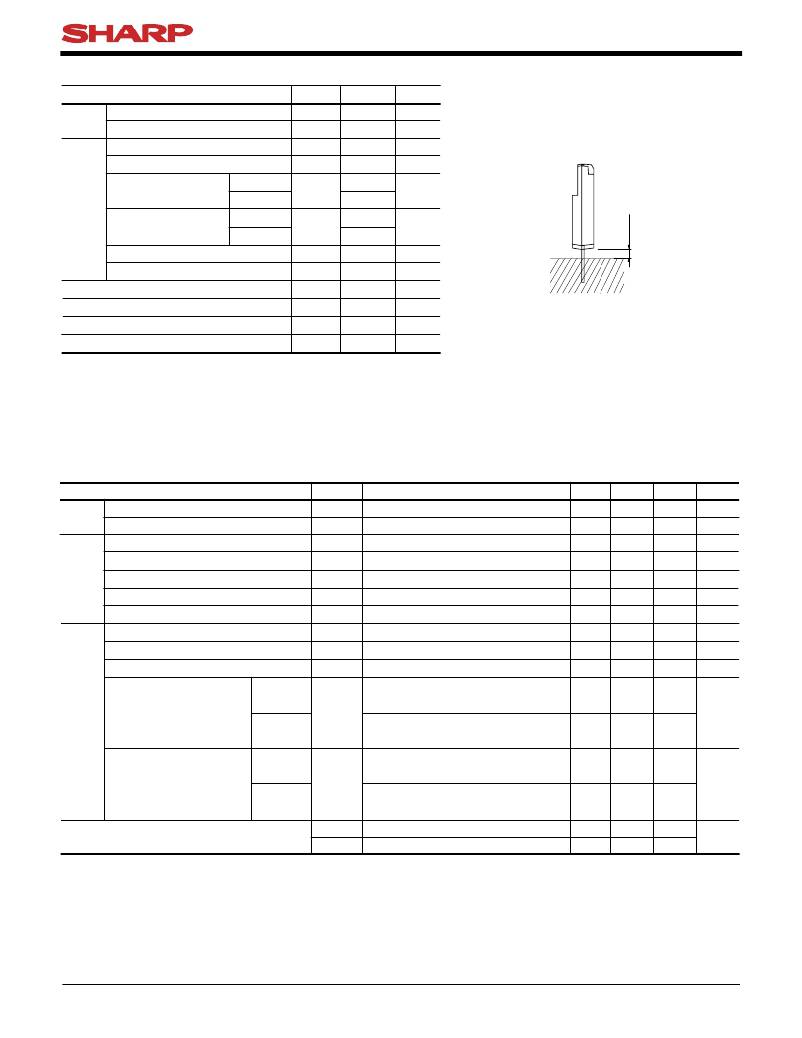

S108T02 Series
S208T02 Series
■ Absolute Maximum Ratings
(T a = 25?C)
Parameter Symbol Rating Unit
Input
Forward current
Reverse voltage
RMS ON-state current
I F
V R
I T (rms)
50 *3
6
8 *3
mA
V
A
Peak one cycle surge current
I surge
80
*4
A
Output
Repetitive S108T02
peak OFF-state voltage S208T02
Non-Repetitive S108T02
peak OFF-state voltage S208T02
Critical rate of rise of ON-state current
Operating frequency
V DRM
V DSM
dI T /dt
f
400
600
400
600
50
45 to 65
V
V
A/ μ s
Hz
*1
Isolation voltage
V iso (rms)
3.0
kV
Operating temperature
Storage temperature
*2 Soldering temperature
T opr
T stg
T sol
? 25 to + 100
? 30 to + 125
260
?C
?C
?C
Soldering area
*1 40 to 60%RH, AC for 1minute, f = 60Hz
*2 For 10s
*3 Refer to Fig.1, Fig.2
*4 f = 60Hz sine wave, T j = 25?C start
■ Electro-optical Characteristics
(T a = 25?C)
Parameter Symbol
Conditions MIN.
TYP.
MAX.
Unit
Input
Forward voltage
Reverse current
Repetitive peak OFF-state current
V F
I R
I DRM
I F = 20mA
V R = 3V
V D = V DRM
?
?
?
1.2
?
?
1.4
100
100
V
μ A
μ A
ON-state voltage
V T (rms) I T (rms) = 2A, Resistance load, I F = 20mA
?
?
1.5
V
Output Holding current
Critical rate of rise of OFF-state voltage
I H
dV/dt
?
V D = 2/3?V DRM
?
30
?
?
50
?
mA
V/ μ s
Critical rate of rise of OFF-state voltage at commutaion (dV/dt)c
T j = 125 ?C , V D = 2/3?V DRM , dI T /dt = ? 4.0A/ms
5
?
?
V/ μ s
Minimum trigger current
Zero cross voltage
Isolation resistance
I FT
V OX
R ISO
V D = 6V, R L = 30 ?
I F = 8mA
DC500V, 40 to 60%RH
?
?
10 10
?
?
?
8
35
?
mA
V
?
Transfer Turn-on time
charac-
teristics
Turn-off time
Thermal resistance
S108T02
S208T02
S108T02
S208T02
t on
t off
R th (j-c)
R th (j-a)
V D (rms) = 100V, AC50Hz, I F = 20mA
I T (rms) = 2A, Resistance load
V D (rms) = 200V, AC50Hz, I F = 20mA
I T (rms) = 2A, Resistance load
V D (rms) = 100V, AC50Hz, I F = 20mA
I T (rms) = 2A, Resistance load
V D (rms) = 200V, AC50Hz, I F = 20mA
I T (rms) = 2A, Resistance load
Between junction and case
Between junction and ambience
?
?
?
?
?
?
?
?
?
?
4.5
40
10
10
10
10
?
?
ms
ms
?C /W
Sheet No.: D4-A01801EN
4
