参数资料
| 型号： | SC4524SETRT |
| 厂商： | Semtech |
| 文件页数： | 15/21页 |
| 文件大小： | 0K |
| 描述： | IC REG BUCK 2A 8SOIC |
| 标准包装： | 1 |
| 类型： | 降压（降压） |
| 输出数： | 1 |
| 输入电压： | 2.8 V ~ 30 V |
| PWM 型： | 电流模式 |
| 频率 - 开关： | 1.4MHz |
| 电流 - 输出： | 2A |
| 同步整流器： | 无 |
| 工作温度： | -40°C ~ 85°C |
| 安装类型： | 表面贴装 |
| 封装/外壳： | 8-SOIC（0.154"，3.90mm 宽） |
| 包装： | 标准包装 |
| 供应商设备封装： | 8-SOIC-EP |
| 产品目录页面： | 1358 (CN2011-ZH PDF) |
| 其它名称： | SC4524SEDKR |
SC4524
POWER MANAGEMENT
Applications Information
start voltage ramp at the SS pin clamps the error amplifier
output (Figure 2). During regulator start-up, COMP voltage
follows the SS voltage. The converter starts to switch
when its COMP voltage exceeds 1.1V. The peak inductor
current gradually increases until the converter output
comes into regulation. Proper soft-start prevents output
overshoot during start-up. Current drawn from the input
supply is also well controlled. Notice that the inductor
current, not the converter output voltage, is ramped
during soft-start.
The soft-start capacitor is charged to a final voltage of
about 2.4V.
2.4V
2V
Overload / Short-Circuit Protection
The current limit comparator in the SC4524 limits the
peak inductor current to 3.2A (typical). The regulator
output voltage will fall if the load is increased above the
current limit. If overload is detected (the output voltage
falls below 70% of the set voltage), then the regulator
will be shut off. An internal 0.8μA current sink starts to
discharge the soft-start capacitor. As the soft-start
capacitor is discharged below 1V, the discharge current
source turns off and the soft-start capacitor is recharged
with a 1.8μA current source. The regulator undergoes
soft-start. During soft-start (1V < V SS < 2V), the overload
shutdown latch in Figure 3 cannot be set. When V SS
exceeds 2V, the set input of the overload latch is no
VSS
Hiccup
Enabled
1V
0.3V
0
Fast
Charge
VFB
1V
0.7V
Switching Starts
0
2V
1V
0.3V
VSS
Output must be at
least 70% of its set
voltage in this
interval or the
regulator will
undergo shutdown
and restart
(hiccup).
VCOMP

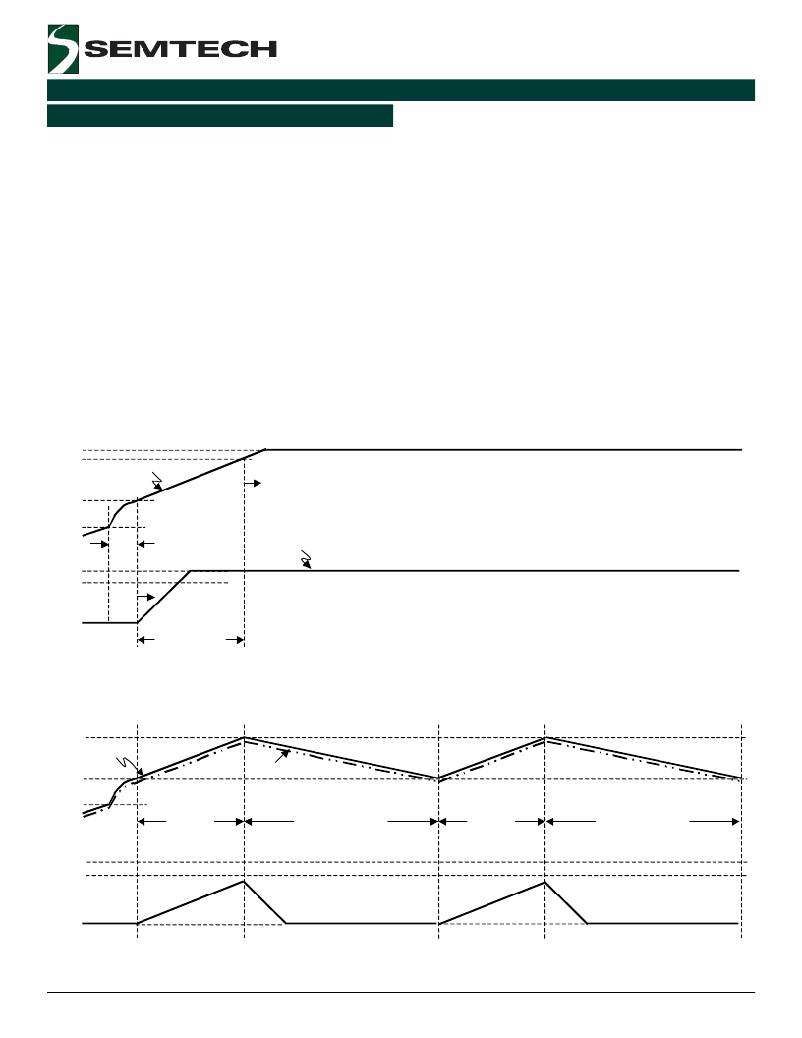

Figure 9(a). Normal Soft-start.
0
Switching
Not Switching
Switching
Not Switching
1V
0.7V
VFB
0
Figure 9(b).
Start-up Fails due to (i) Short Soft-start Duration or (ii) Output Overload or (iii)
Output Short-circuited.
? 2006 Semtech Corp.
15
www.semtech.com
