参数资料
| 型号： | 2SC2873 |
| 元件分类： | 小信号晶体管 |
| 英文描述： | 2000 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR |
| 封装： | LEAD FREE, 2-5K1A, SC-62, 3 PIN |
| 文件页数： | 2/5页 |
| 文件大小： | 167K |
| 代理商： | 2SC2873 |
2SA1384
2011-01-24
2

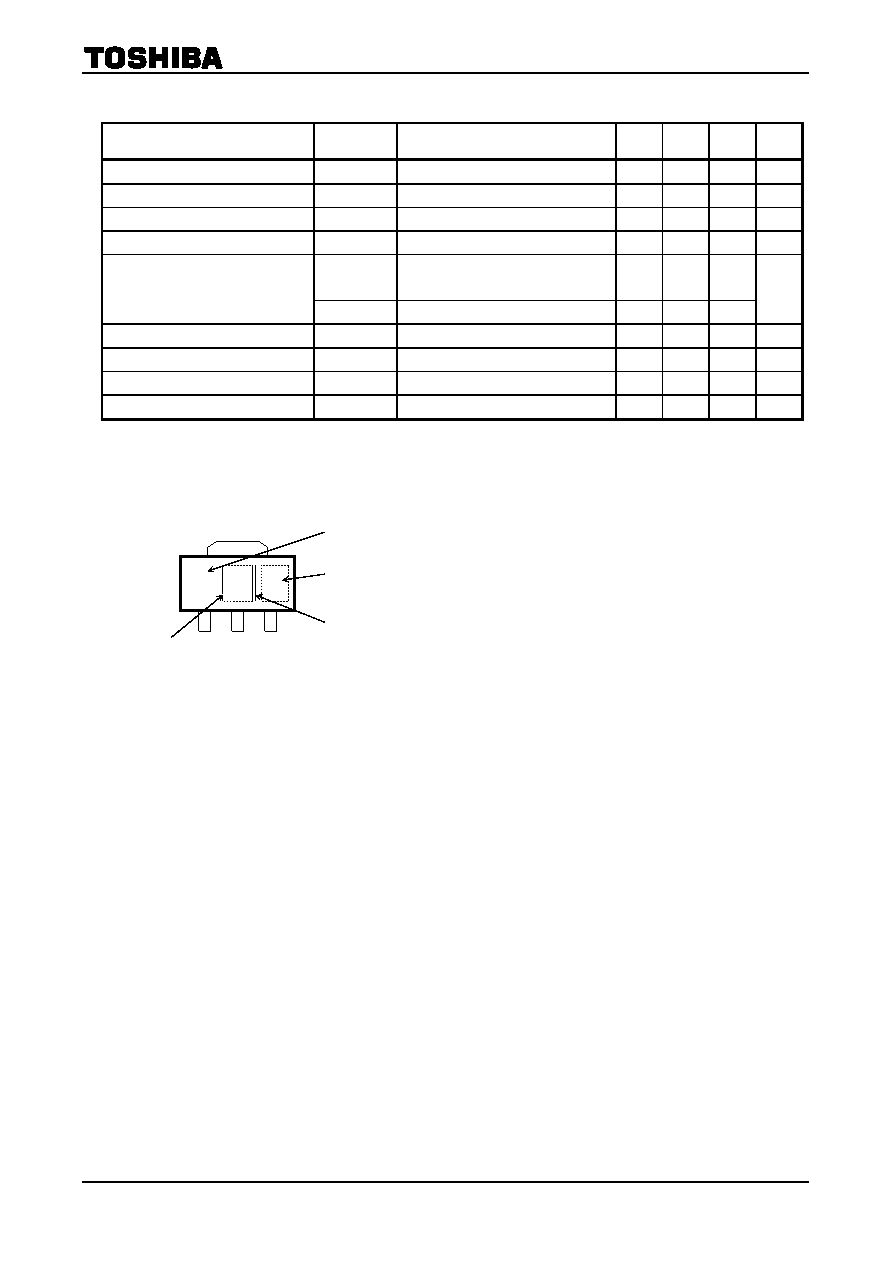

Electrical Characteristics (Ta = 25°C)
Characteristics
Symbol
Test Condition
Min
Typ.
Max
Unit
Collector cut-off current
ICBO
VCB = 300 V, IE = 0A
―
0.1
μA
Emitter cut-off current
IEBO
VEB = 8 V, IC = 0A
―
0.1
μA
Collector-base breakdown voltage
V (BR) CBO
IC = 0.1 mA, IE = 0A
300
―
V
Collector-emitter breakdown voltage
V (BR) CEO
IC = 1 mA, IB = 0A
300
―
V
hFE (1)
(Note 3)
VCE = 10 V, IC = 20 mA
30
―
150
DC current gain
hFE (2)
VCE = 10 V, IC = 1 mA
20
―
Collector-emitter saturation voltage
VCE (sat)
IC = 20 mA, IB = 2 mA
―
0.5
V
Base-emitter saturation voltage
VBE (sat)
IC = 20 mA, IB = 2 mA
―
1.0
V
Transition frequency
fT
VCE = 10 V, IC = 20 mA
50
70
―
MHz
Collector output capacitance
Cob
VCB = 20 V, IE = 0A, f = 1 MHz
―
6
8
pF
Note 3: hFE (1) classification R: 30 to 90, O: 50 to 150
Marking
J
Part No. (or abbreviation code)
Lot No.
Note 4
Characteristics indicator
Note 4:
A line beside a Lot No. identifies the indication of product Labels.
Without a line: [[Pb]]/INCLUDES > MCV
With a line : [[G]]/RoHS COMPATIBLE or [[G]]/RoHS [[Pb]]
Please contact your TOSHIBA sales representative for details as to environmental matters such as the
RoHS compatibility of Product.
The RoHS is the Directive 2002/95/EC of the European Parliament and of the Council of 27 January
2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
