LIS2L02AS4
2/7

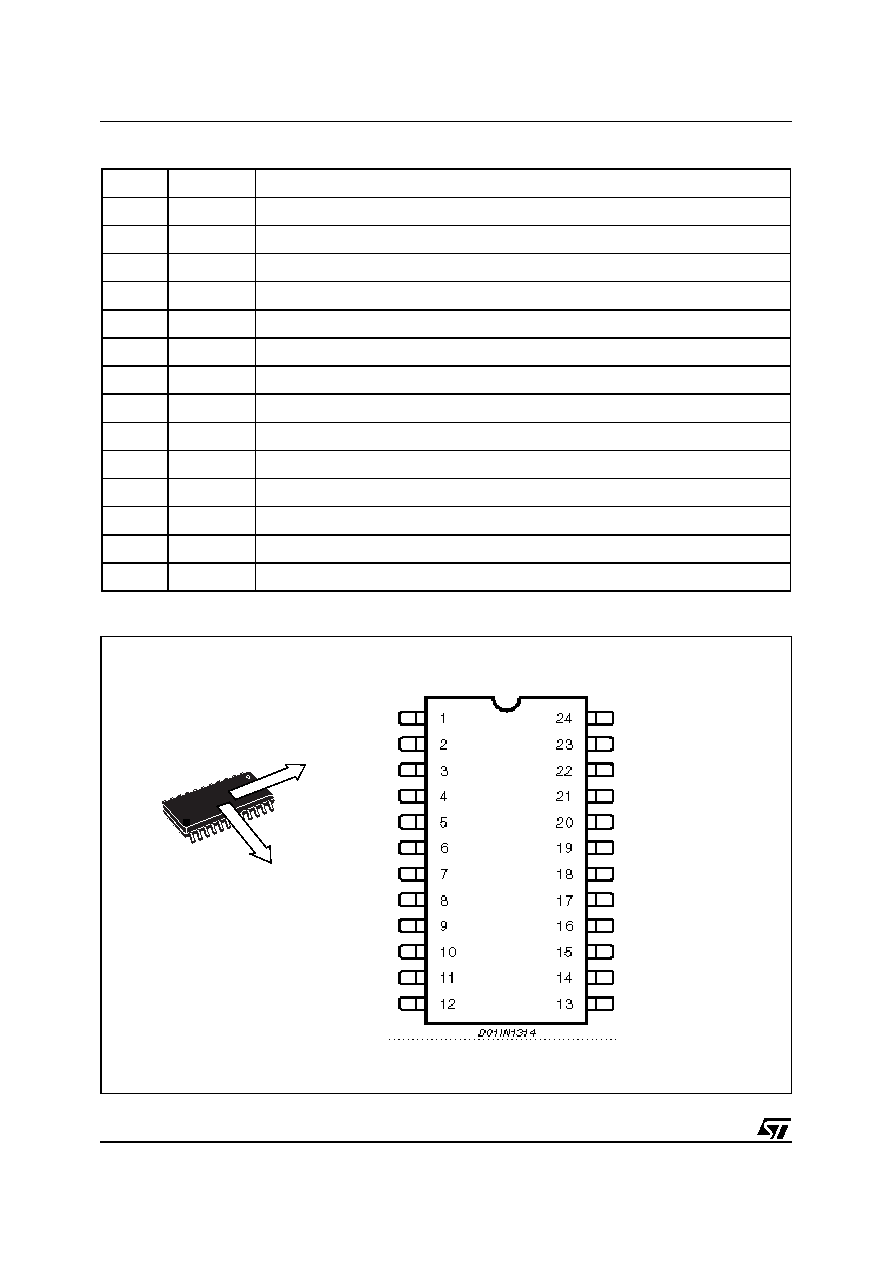

PIN DESCRIPTION
PIN CONNECTION (Top view)
N°
Pin
Function
1 to 5
NC
Internally not connected
6
GND
0V supply
7
Vdd
Power supply
8
Vouty
Output Voltage
9
ST
Self Test (Logic 0: normal mode; Logic 1: Self-test)
10
Voutx
Output Voltage
11
PD
Power Down (Logic 0: normal mode; Logic 1: Power-Down mode)
12
NC
Internally not connected
13
FS
Full Scale selection (Logic 0: 2g Full-scale; Logic 1: 6g Full-scale)
14-15
Reserved
Leave unconnected or connect to Vdd
16
Reserved
Connect to Vdd or ground
17
Reserved
Leave unconnected or connect to Vdd
18
Reserved
Leave unconnected or connect to ground
19 to 24
NC
Internally not connected
NC
reserved
FS
NC
GND
Vdd
Vouty
ST
Voutx
PD
NC
DIRECTION OF THE
DETECTABLE
ACCELERATIONS
Y
1
13
X
