参数资料
| 型号： | PC410S0NIP0F |
| 厂商： | Sharp Microelectronics |
| 文件页数： | 1/15页 |
| 文件大小： | 0K |
| 描述： | PHOTOCOUPLER 10MBIT/S 8-SMD |
| 产品目录绘图： | PC410, PC910 Circuit |
| 标准包装： | 1 |
| 系列： | OPIC™ |
| 电压 - 隔离： | 3750Vrms |
| 通道数： | 1，单向 |
| 电流 - 输出 / 通道： | 50mA |
| 数据速率： | 10Mbps |
| 传输延迟高 - 低 @ 如果： | 48ns @ 7.5mA |
| 电流 - DC 正向(If)： | 20mA |
| 输入类型： | DC |
| 输出类型： | 开路集电极 |
| 安装类型： | 表面贴装 |
| 封装/外壳： | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商设备封装： | 8-Miniflat |
| 包装： | 标准包装 |
| 产品目录页面： | 2770 (CN2011-ZH PDF) |
| 其它名称： | 425-2534-6 |

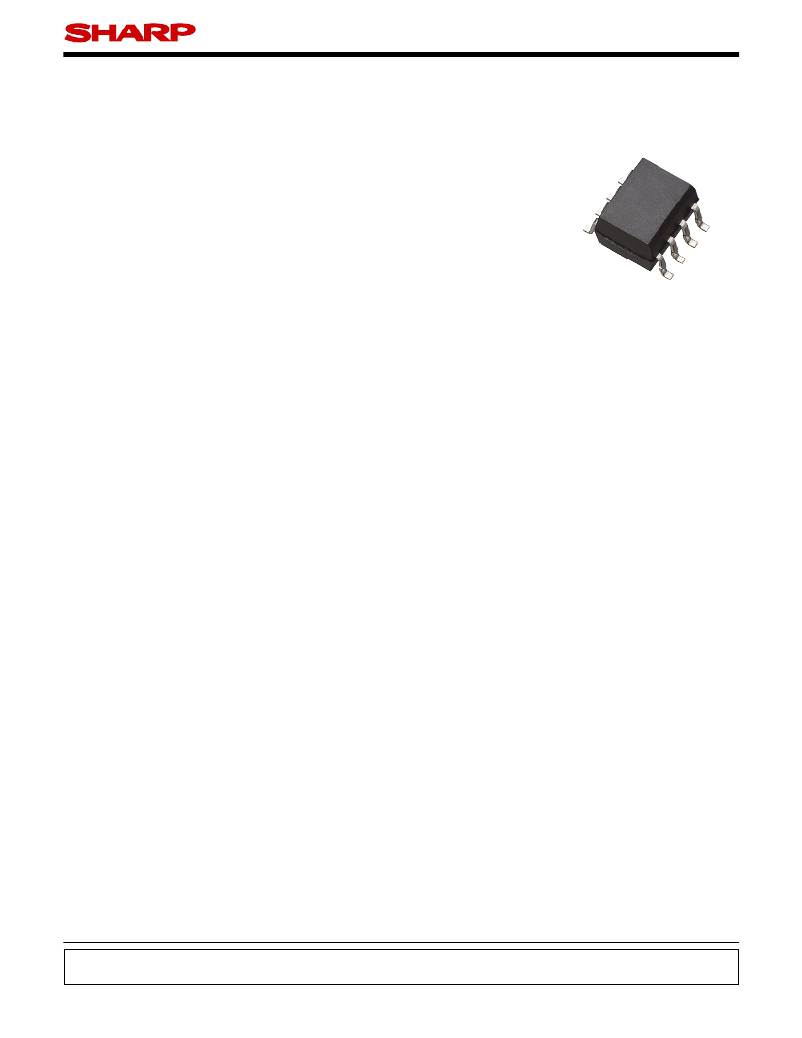

PC410S0NIP0F Series
PC410S0NIP0F
Series
■ Description
PC410S0NIP0F Series contains a LED optically cou-
pled to an OPIC.
It is packaged in a 8 pin mini- ? at.
Input-output isolation voltage(rms) is 3.75 kV.
High speed response (TYP. 10Mb/s) and CMR is
High Speed 10Mb/s, High CMR
Mini- ? at Package ? OPIC Photo-
coupler
■ Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
? le No. E64380 (as model No. PC410S )
2. Approved by VDE, DIN EN60747-5-2 ( ? ) (as an op-
tion), ? le No. 40009162 (as model No. PC410S )
3. Package resin : UL ? ammability grade (94V-0))
MIN. 10kV/ μ s.
( ? )
DIN EN60747-5-2 : successor standard of DIN VDE0884.
■ Features
1. 8 pin Mini- ? at package
2. Double transfer mold package
(Ideal for Flow Soldering)
■ Applications
1. Programmable controller
2. Inverter
3. High noise immunity due to high instantaneous com-
mon mode rejection voltage (CM H : MIN. 10kV/ μ s, CM L
: MIN. ? 10kV/ μ s)
4. High speed response
(t PHL : TYP. 48ns, t PLH : TYP. 50ns)
5. Isolation voltage between input and output (V iso(rms) :
3.75kV)
6. Lead-free and RoHS driective compliant
* "OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-pro-
cessing circuit integrated onto a single chip.
Notice The content of data sheet is subject to change without prior notice.
In the absence of con ? rmation by device speci ? cation sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device speci ? cation sheets before using any SHARP device.
Sheet No.: D2-A09001EN
1
Date Sep. 1. 2006
? SHARP Corporation
