Filter specification
TFS 341
3/4
______________________________________________________________________________________________________
Stability characteristics
After the following tests the filter shall meet the whole specification:
1. Shock:
100g, 18 ms, half sine wave, 3 shocks each plane;
DIN IEC 68 T2 - 27
2. Vibration:
10 Hz to 500 Hz, 0,075 mm or 1g respectively, 1 octave per min, 10 cycles per plan, 3 plans;
DIN IEC 68 T2 - 6
3. Damp heat:
90 % to 95 % rel. humidity, 40 °C, 10 days;
(steady state)
DIN IEC 68 - 2 - 3
4. Resistance to
solder heat (Reflow):
260 °C for 10 sec;

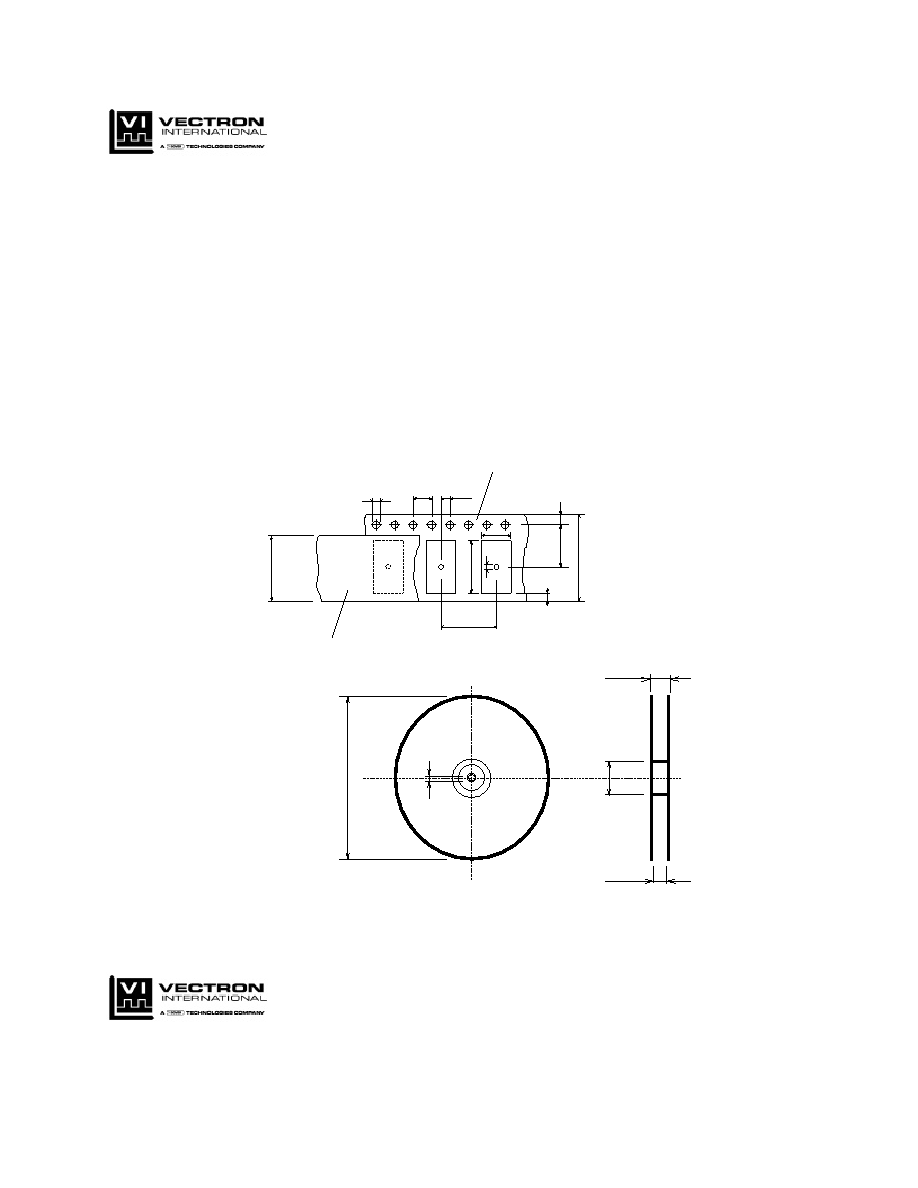

Packing
Tape & Reel:
IEC 286 - 3, with exception of value for N and minimum bending radius;
tape type II, embossed carrier tape with top cover tape on the upper side;
max. pieces of filters per reel: 3400
Do
Po
E
F
W
P1
EMBOSSED CARRIER TAPE
COVER TAPE
G
P2
Bo
Ao
13,4 ± 0,1
D1
Tape (all dimensions in mm)
W
:
16
± 0,3
Po
:
4
± 0,1
Do
:
1,5
+ 0,5
E
:
1,75 ± 0,1
F
:
7,5 ± 0,1
G (min) :
0,75
P2
:
2
± 0,05
P1
:
8
± 0,1
D1(min) :
1,5
Ao
:
5,4
± 0,1
Bo
:
7,4
± 0,1
D1
:
1,5
+ 0,5
A
C
N
W 1
W 2
Reel (all dimensions in mm):
A
:
330
W1
:
16,4 +2
W2 (max) :
22,4
N (min)
:
>= 90
C
:
13
± 0,25
The minimum bending radius is 45 mm. The mounting surface of the filters faces the bottom side of the embossed carrier tape. The
marking of the filters is able to read if the view is directed on the upper side of the carrier tape with the sprocket holes on the right side
of the tape.
www.vectron.com
USA: Vectron International 166 Glover Avenue, Norwalk, CT 06856 Tel: 1-88-VECTRON-1 Fax: 1-888-FAX-VECTRON
EUROPE: In Denmark, Finland, Ireland, Italy, Israel, Norway, Spain, UK: Tel: 44(0) 1703 766 288 Fax: 44 (0) 1703 766 822
In Austria, Belgium, France, Germany, Luxembourg, Netherlands, Sweden, Switzerland: Tel: 49 (0) 72 63 648 0 Fax: 49(0) 72 63 125
ASIA: In China, Taiwan, Japan: Tel: 1-603-598-0075 In Korea, Singapore, Australia, India: Tel: 1-203-853-4433 Fax: 1-203-849-1423
Vectron International reserves the right to make changes to the product(s) and/or information contained herein without notice.
No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
