| 型号： | TRF3702IRHCG4 |
| 厂商： | Texas Instruments |
| 文件页数： | 7/39页 |
| 文件大小： | 0K |
| 描述： | IC QUADRATURE MODULATOR 16-VQFN |
| 产品培训模块： | RFID Technology and Applications |
| 标准包装： | 92 |
| 功能： | 调制器 |
| LO 频率： | 1.5GHz ~ 2.5GHz |
| RF 频率： | 1.5GHz ~ 2.5GHz |
| P1dB： | 7dBm |
| 底噪： | -155dBm/Hz |
| 输出功率： | -2.5dBm |
| 电流 - 电源： | 170mA |
| 电源电压： | 4.5 V ~ 5.5 V |
| 测试频率： | 1.842GHz |
| 封装/外壳： | 16-VQFN 裸露焊盘 |
| 包装： | 管件 |
| 配用： | TRF3702EVM-ND - TRF3702EVM |
第1页第2页第3页第4页第5页第6页当前第7页第8页第9页第10页第11页第12页第13页第14页第15页第16页第17页第18页第19页第20页第21页第22页第23页第24页第25页第26页第27页第28页第29页第30页第31页第32页第33页第34页第35页第36页第37页第38页第39页
TRF3702
www.ti.com
SLWS149A – SEPTEMBER 2004 – REVISED AUGUST 2006
DEFINITIONS OF SELECTED SPECIFICATIONS (continued)
Unadjusted Sideband Suppression
This specification measures the amount by which the unwanted sideband of the input signal is attenuated in the
output of the modulator, relative to the wanted sideband. It is assumed that the baseband inputs delivered to the
modulator input pins are perfectly matched in amplitude and are exactly 90 ° out of phase. Unadjusted sideband
suppression is measured in dBc.
Adjusted (Optimized) Sideband Suppression
This differs from the unadjusted sideband suppression in that the baseband inputs are iteratively adjusted
around their theoretical values to maximize the amount of sideband suppression. Adjusted sideband
suppression is measured in dBc.
Suppressions Over Temperature
This specification assumes that the user has gone through the optimization process for the suppression in
question, and set the optimal settings for the I, Q inputs at T A = 25 ° C. This specification then measures the
suppression when temperature conditions change after the initial calibration is done.

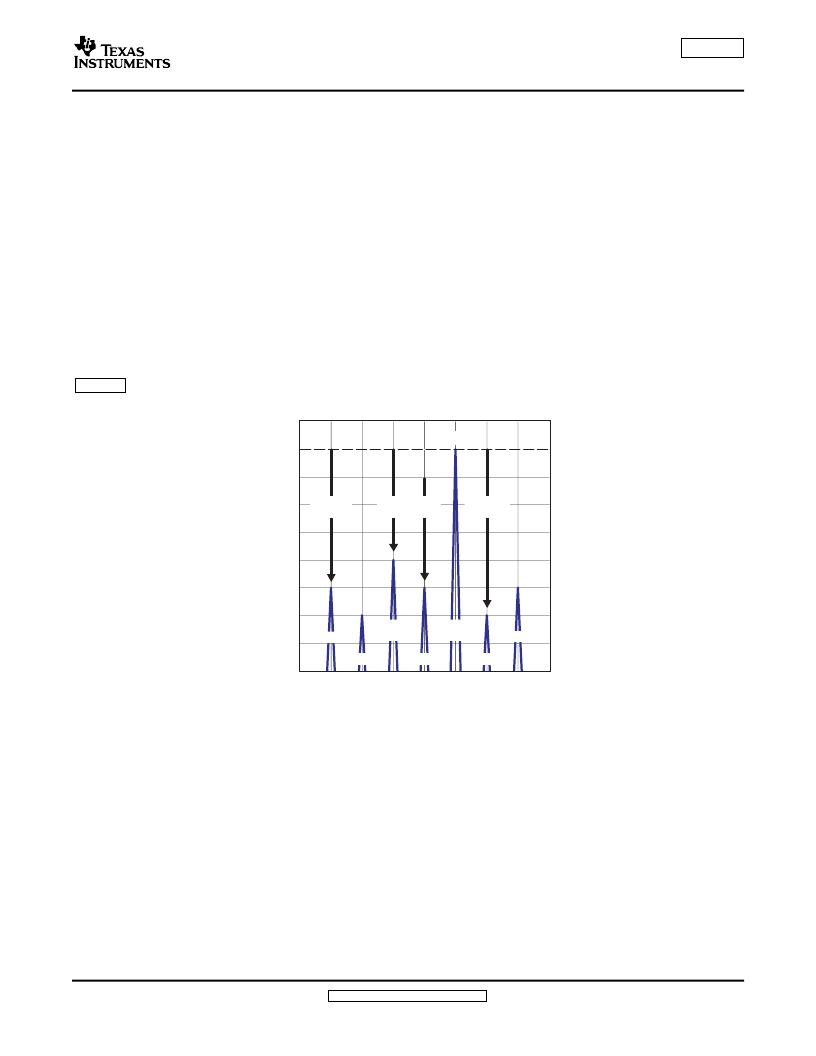

Figure 1 shows a simulated output and illustrates the respective definitions of various terms used in this data
sheet. The graph assumes a baseband input of 50 kHz.
10
P OUT
0
?10
?20
3 RD LSB
(dBc)
SBS
(dBc)
CS
(dBc)
2 ND USB
(dBc)
?30
?40
?50
?60
LSB
USB
?70
3 RD LSB
(Undesired)
(Desired)
3 RD USB
?80
2 ND LSB
Carrier
2 ND USB
?200 ?150 ?100 ?50
0
50
100
150
200
f ? Frequency Offset ? kHz (Relative to Carrier)
G007
Figure 1. Graphical Illustration of Common Terms
TYPICAL CHARACTERISTICS
For all the performance plots in this section, the following conditions were used, unless otherwise noted:
VCC = 5 V, VCM = 3.7 V, P LO = 0 dBm, I and Q inputs driven differentially at a frequency of 50 kHz. In the case
of optimized suppressions, the point of optimization is noted and is always at nominal conditions and room
temperature. A level of >50 dBc is assumed to be optimized.
Submit Documentation Feedback
7
