APTC60AM18SC
A
PT
C
60A
M
18S
C
–
R
ev
1
M
ay,
2004
APT website – http://www.advancedpower.com
3 – 7
Parallel diode ratings and characteristics
Symbol Characteristic
Test Conditions
Min
Typ
Max
Unit
IF(AV)
Maximum Average Forward Current
50% duty cycle
Tc = 125°C
80
A
Tj = 25°C
1.6
1.8
VF
Diode Forward Voltage
IF = 80A
Tj = 175°C
2.0
2.4
V
QC
Total Capacitive Charge
IF = 80A, VR = 300V
di/dt =2000A/s
112
nC
f = 1MHz, VR = 200V
520
Q
Total Capacitance
f = 1MHz, VR = 400V
400
pF
Thermal and package characteristics
Symbol Characteristic
Min
Typ
Max
Unit
Transistor
0.15
Series diode
0.46
RthJC
Junction to Case
Parallel diode
0.35
°C/W
VISOL
RMS Isolation Voltage, any terminal to case t =1 min, I isol<1mA, 50/60Hz
2500
V
TJ
Operating junction temperature range
-40
150
TSTG
Storage Temperature Range
-40
125
TC
Operating Case Temperature
-40
100
°C
To heatsink
M6
3
5
Torque Mounting torque
For terminals
M5
2
3.5
N.m
Wt
Package Weight
280
g

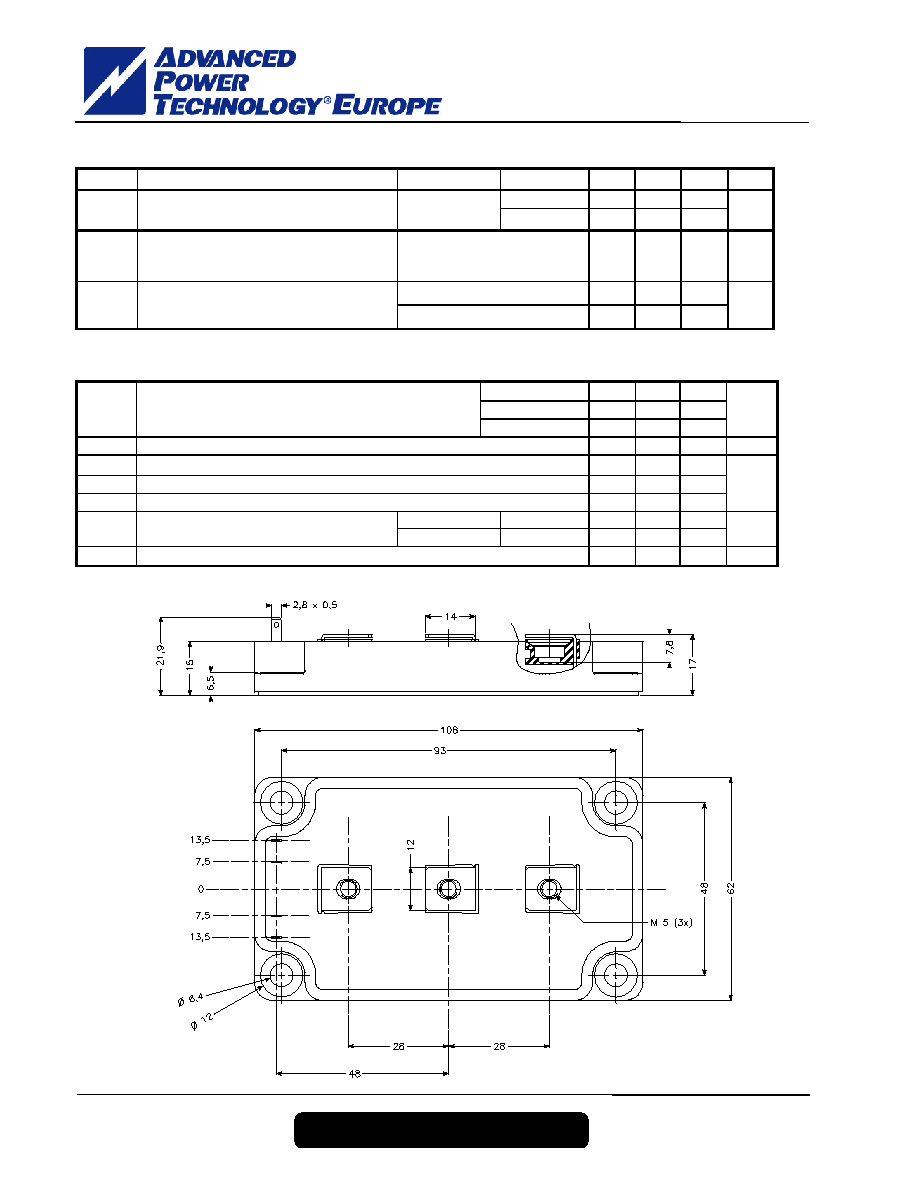

Package outline
