参数资料
| 型号： | PC925L0NSZ0F |
| 厂商： | Sharp Microelectronics |
| 文件页数： | 1/20页 |
| 文件大小： | 0K |
| 描述： | PHOTOCOUPLER GATE DRV 2.5A 8-DIP |
| 产品目录绘图： | PC925L0NSZ0F Circuit |
| 标准包装： | 50 |
| 系列： | OPIC™ |
| 电压 - 隔离： | 5000Vrms |
| 通道数： | 1，单向 |
| 电流 - 输出 / 通道： | 1.5A |
| 传输延迟高 - 低 @ 如果： | 300ns |
| 电流 - DC 正向(If)： | 25mA |
| 输入类型： | DC |
| 输出类型： | 推挽式/图腾柱 |
| 安装类型： | 通孔 |
| 封装/外壳： | 8-DIP（0.300"，7.62mm） |
| 供应商设备封装： | 8-DIP |
| 包装： | 管件 |
| 产品目录页面： | 2770 (CN2011-ZH PDF) |
| 其它名称： | 425-2542-5 |

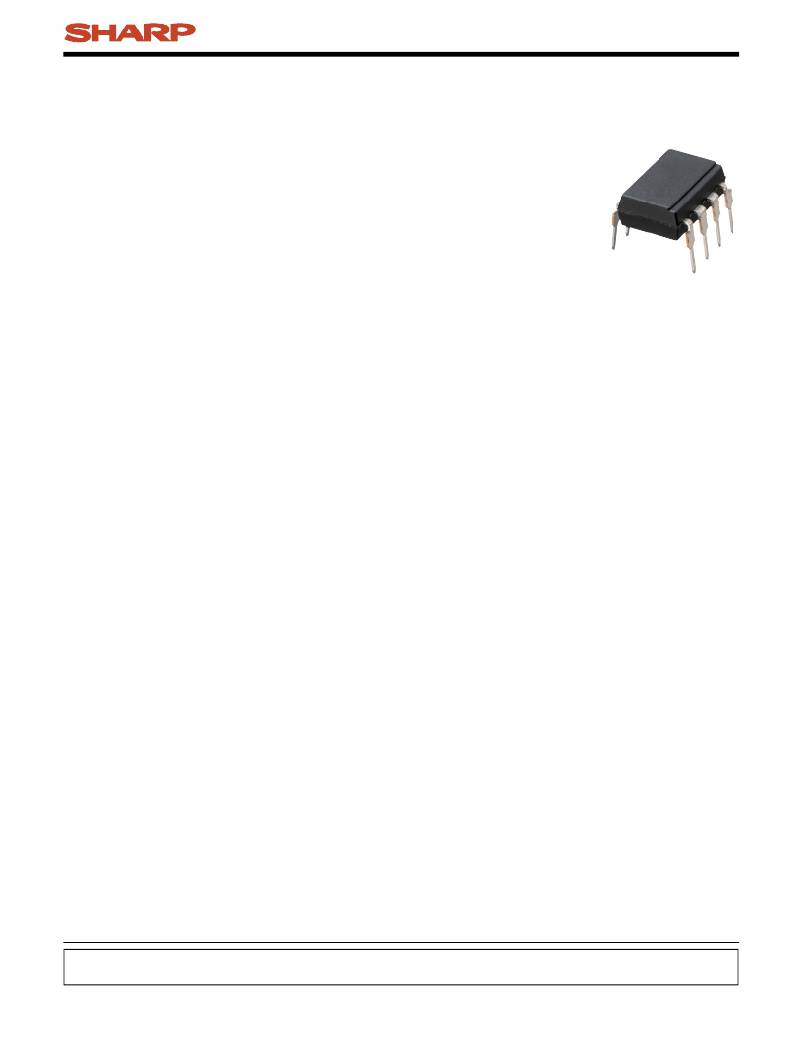

PC925L0NSZ0F Series
PC925L0NSZ0F
Series
■ Description
PC925L0NSZ0F Series contains a LED optically cou-
pled to an OPIC chip.
It is packaged in a 8 pin DIP, available in SMT gullwing
lead form option.
Peak output current is 2.5A, Input-output isolation
voltage(rms) is 5kV and High speed response (t PHL , t PLH :
MAX. 0.5 μ s).
High Speed, 2.5A Output,
Gate Drive DIP 8 pin
? OPIC Photocoupler
■ Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
? le No. E64380 (as model No. PC925L )
2. Package resin : UL ? ammability grade (94V-0)
■ Applications
1. IGBT/MOSFET gate drive for inverter control
■ Features
1. 8 pin DIP package
2. Double transfer mold package
(Ideal for Flow Soldering)
3. Built-in direct drive circuit for MOSFET / IGBT drive
(I O(peak) : 2.5A)
4. High speed response (t PHL , t PLH : MAX. 0.5 μ s)
5. Wide operating supply voltage range
(V CC = 15 to 30 V)
6. High noise immunity due to high instantaneous com-
mon mode rejection voltage (CM H : MIN. ? 15kV/ μ s,
CM L : MIN. 15kV/ μ s)
7. Long creepage distance type (wide lead-form type
only : MIN. 8mm)
8. High isolation voltage between input and output
(V iso(rms) : 5kV)
9. Lead-free and RoHS directive compliant
* "OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-pro-
cessing circuit integrated onto a single chip.
Notice The content of data sheet is subject to change without prior notice.
In the absence of con ? rmation by device speci ? cation sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device speci ? cation sheets before using any SHARP device.
Sheet No.: D4-A09301EN
1
Date Sep. 01. 2006
? SHARP Corporation
