LTC3404
APPLICATIO S I FOR ATIO
Phase-Locked Loop and Frequency Synchronization
The LTC3404 has an internal voltage-controlled oscillator
and phase detector comprising a phase-locked loop. This
allows the top MOSFET turn-on to be locked to the rising
edge of an external frequency source. The frequency range
of the voltage-controlled oscillator is 1MHz to 1.7MHz. The
phase detector used is an edge sensitive digital type that
provides zero degrees phase shift between the
external and internal oscillators. This type of phase detec-
tor will not lock up on input frequencies close to the har-
monics of the V CO center frequency. The PLL hold-in range
Δ f H is equal to the capture range, Δ f H = Δ f C = 300kHz and
–400kHz.
The output of the phase detector is a pair of complemen-
tary current sources charging or discharging the external
filter network on the PLL LPF pin. The relationship
2.0
1.8
1.6
1.4
1.2
1.0
0.8
between the voltage on the PLL LPF pin and operating
frequency is shown in Figure 4. A simplified block diagram
is shown in Figure 5.
If the external frequency (V SYNC/MODE ) is greater than
1.4MHz, the center frequency, current is sourced
continuously, pulling up the PLL LPF pin. When the
external frequency is less than 1.4MHz, current is sunk
continuously, pulling down the PLL LPF pin. If the
external and internal frequencies are the same but exhibit
a phase difference, the current sources turn on for an
amount of time corresponding to the phase difference.
Thus the voltage on the PLL LPF pin is adjusted until the
phase and frequency of the external and internal oscilla-
tors are identical. At this stable operating point the phase
comparator output is high impedance and the filter
capacitor C LP holds the voltage.
The loop filter components C LP and R LP smooth out the
current pulses from the phase detector and provide a
stable input to the voltage controlled oscillator. The filter
component’s C LP and R LP determine how fast the loop
acquires lock. Typically R LP = 10k and C LP is 2200pF to
0.01 μ F. When not synchronized to an external clock, the
internal connection to the VCO is disconnected. This
disallows setting the internal oscillator frequency by a DC
voltage on the V PLL LPF pin.
0.6
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
Efficiency Considerations
V PPL LPF (V)
3404 ? F04

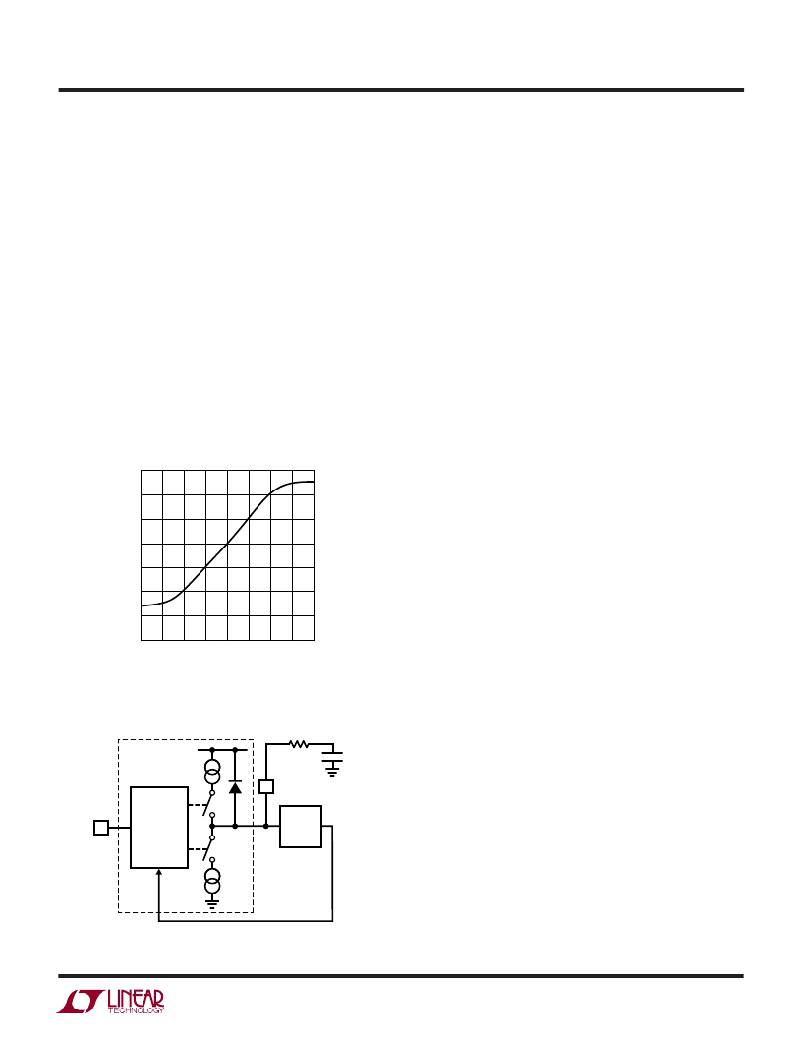

Figure 4. Relationship Between Oscillator
Frequency and Voltage at PLL LPF Pin
The efficiency of a switching regulator is equal to the
output power divided by the input power times 100%. It is
often useful to analyze individual losses to determine what
PHASE
DETECTOR
2.4V
R LP
C LP
is limiting the efficiency and which change would produce
the most improvement. Efficiency can be expressed as:
Efficiency = 100% – (L1 + L2 + L3 + ...)
SYNC/
MODE
DIGITAL
PHASE/
FREQUENCY
DETECTOR
PLL LPF
VCO
where L1, L2, etc. are the individual losses as a percentage
of input power.
Although all dissipative elements in the circuit produce
losses, two main sources usually account for most of the
losses in LTC3404 circuits: V IN quiescent current and I 2 R
losses. The V IN quiescent current loss dominates the
efficiency loss at very low load currents whereas the I 2 R
3404 F05
Figure 5. Phase-Locked Loop Block Diagram
loss dominates the efficiency loss at medium to high load
currents. In a typical efficiency plot, the efficiency curve at
3404fb
11
