| 型号： | PC924L0NSZ0F |
| 厂商： | Sharp Microelectronics |
| 文件页数： | 1/18页 |
| 文件大小： | 0K |
| 描述： | PHOTOCOUPLER OPIC IGBT DVR 8-DIP |
| 产品目录绘图： | PC924 Circuit |
| 标准包装： | 1,000 |
| 系列： | OPIC™ |
| 电压 - 隔离： | 5000Vrms |
| 通道数： | 1，单向 |
| 电流 - 输出 / 通道： | 100mA |
| 传输延迟高 - 低 @ 如果： | 100µs @ 10mA |
| 电流 - DC 正向(If)： | 25mA |
| 输入类型： | DC |
| 输出类型： | 推挽式/图腾柱 |
| 安装类型： | 通孔 |
| 封装/外壳： | 8-DIP（0.300"，7.62mm） |
| 供应商设备封装： | 8-DIP |
| 包装： | 管件 |
| 其它名称： | 425-2599-5 PC924L0NSZ0F-ND |

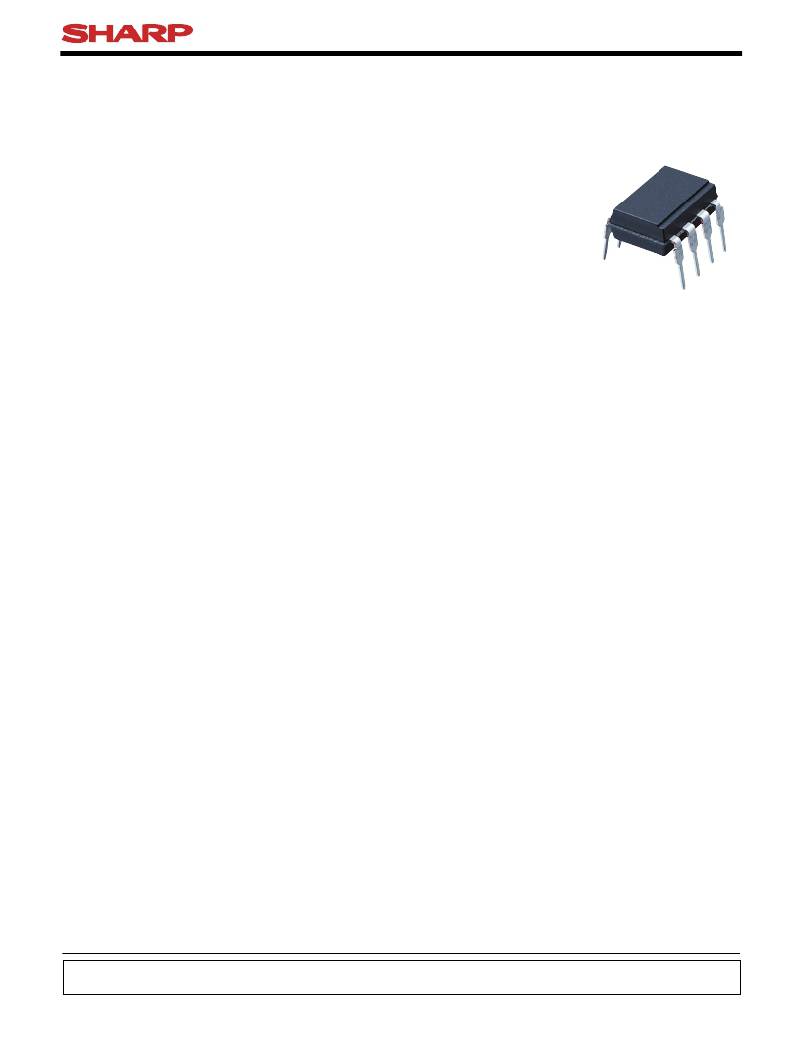

PC924L0NSZ0F Series
PC924L0NSZ0F
Series
■ Description
PC924L0NSZ0F Series contains an IRED optically
coupled to an OPIC chip.
It is packaged in a 8 pin DIP, available in SMT
gullwing lead form option.
Input-output isolation voltage(rms) is 5.0kV.
Gate Drive DIP 8 pin
? OPIC Photocoupler
■ Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No. PC924L )
2. Approved by VDE, DIN EN60747-5-2 ( ? ) (as an
option), file No. 40008898 (as model No. PC924L )
3. Package resin : UL flammability grade (94V-0)
CMR is MIN. 15kV/ μ s.
( ? )
DIN EN60747-5-2 : successor standard of DIN VDE0884
■ Features
1. 8 pin DIP package
2. Double transfer mold package
■ Applications
1. IGBT/MOSFET gate drive for inverter control
(Ideal for Flow Soldering)
3. Built-in direct drive circuit for IGBT drive
(I O1P , I O2P : 0.6A)
4. Wide operating supply voltage range
(V CC : 15 to 30V )
5. High noise immunity due to high instantaneous
common mode rejection voltage
(CM H : MIN. ? 15kV/ μ s, CM L : MIN. 15kV/ μ s)
6. High isolation voltage between input and output
(V iso(rms) : 5.0 kV)
7. Lead-free and RoHS directive compliant
? "OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-processing
circuit integrated onto a single chip.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A06102EN
Date Jun. 30. 2005
? SHARP Corporation
