参数资料
| 型号： | CMPWR150SF |
| 厂商： | ON Semiconductor |
| 文件页数： | 5/10页 |
| 文件大小： | 0K |
| 描述： | IC REG LDO 3.3V .5A SOIC8 |
| 产品变化通告： | Product Discontinuation 30/Sept/2011 |
| 标准包装： | 2,500 |
| 系列： | SmartOR™ |
| 稳压器拓扑结构： | 正，固定式 |
| 输出电压： | 3.3V |
| 输入电压： | 4.5 V ~ 5.5 V |
| 稳压器数量： | 1 |
| 电流 - 输出： | 500mA（最小值） |
| 电流 - 限制（最小）： | 500mA |
| 工作温度： | 0°C ~ 70°C |
| 安装类型： | 表面贴装 |
| 封装/外壳： | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商设备封装： | 8-SOICN |
| 包装： | 带卷 (TR) |
CMPWR150

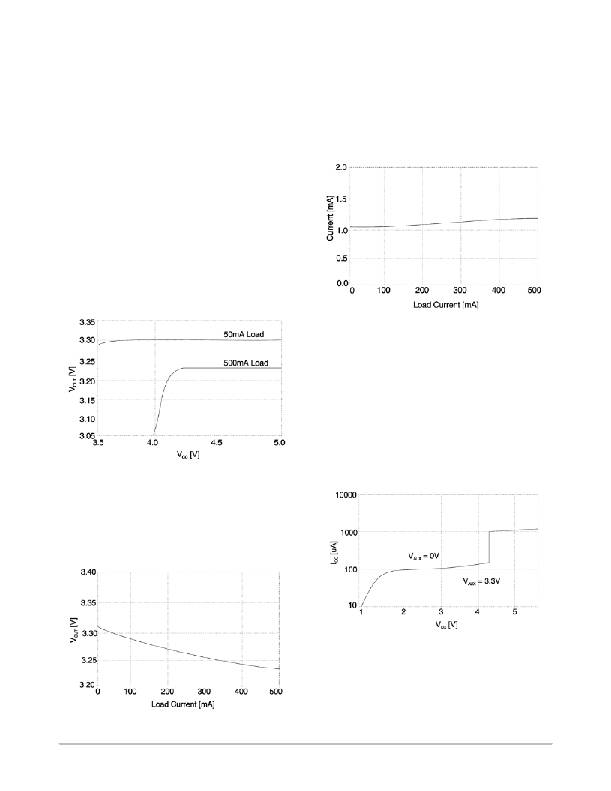

TYPICAL DC CHARACTERISTICS
Unless stated otherwise, all DC characteristics were
measured at room temperature with a nominal V CC supply
voltage of 5.0 V and an output capacitance of 10 m F. The
external PMOS switch was present and resistive load
conditions were used.
The test data shown here was obtained from engineering
Ground Current is shown across the entire range of load
conditions in Ground Current. The ground current has
minimal variation across the range of load conditions and
shows only a slight increase at maximum load. This slight
increase at rated load is due to the current limit protection
circuitry becoming active.
samples. The device was modified to allow the regulator to
function below the dropout threshold for the purpose of
obtaining test data. During normal operation, production
parts will shutdown the regulator below a 4.1 V supply.
Dropout Characteristics of the regulator are shown in
Dropout Characteristics. At maximum rated load conditions
(500 mA), a 100 mV drop in regulation occurs when the line
voltage collapses below 4.1 V. For light load conditions
(50 mA), regulation is maintained for line voltages as low as
3.5 V
In normal operation, the regulator is deselected at 4.1 V,
which ensures a regulation output droop of less than 100 mV
is maintained.
Figure 3. Ground Current
V CC Supply Current of the device is shown across the
entire V CC range for both V AUX present (3.3 V) and absent
(0 V) in V
In the absence of V AUX , the supply current remains fixed
at approximately 0.15 mA until V CC reaches the Select
voltage threshold of 4.35 V. At this point the regulator is
enabled and a supply current of 1.0 mA is conducted.
Figure 1. Dropout Characteristics
When V AUX is present, the V CC supply current is less than
10 mA until V CC exceeds V AUX , at which point V CC then
powers the controller (0.15 mA). When V CC reaches
V SELECT , the regulator is enabled.
Load Regulation performance is shown from zero to
maximum rated load in Load Regulation. A change in load
from 10% to 100% of rated, results in an output voltage
change of less than 75 mV. This translates into an effective
output impedance of approximately 0.15 W.
Figure 4. V CC Supply Current (No Lead)
Figure 2. Load Regulation
http://onsemi.com
5
