参数资料
| 型号： | CMPWR150SF |
| 厂商： | ON Semiconductor |
| 文件页数： | 7/10页 |
| 文件大小： | 0K |
| 描述： | IC REG LDO 3.3V .5A SOIC8 |
| 产品变化通告： | Product Discontinuation 30/Sept/2011 |
| 标准包装： | 2,500 |
| 系列： | SmartOR™ |
| 稳压器拓扑结构： | 正，固定式 |
| 输出电压： | 3.3V |
| 输入电压： | 4.5 V ~ 5.5 V |
| 稳压器数量： | 1 |
| 电流 - 输出： | 500mA（最小值） |
| 电流 - 限制（最小）： | 500mA |
| 工作温度： | 0°C ~ 70°C |
| 安装类型： | 表面贴装 |
| 封装/外壳： | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商设备封装： | 8-SOICN |
| 包装： | 带卷 (TR) |
CMPWR150

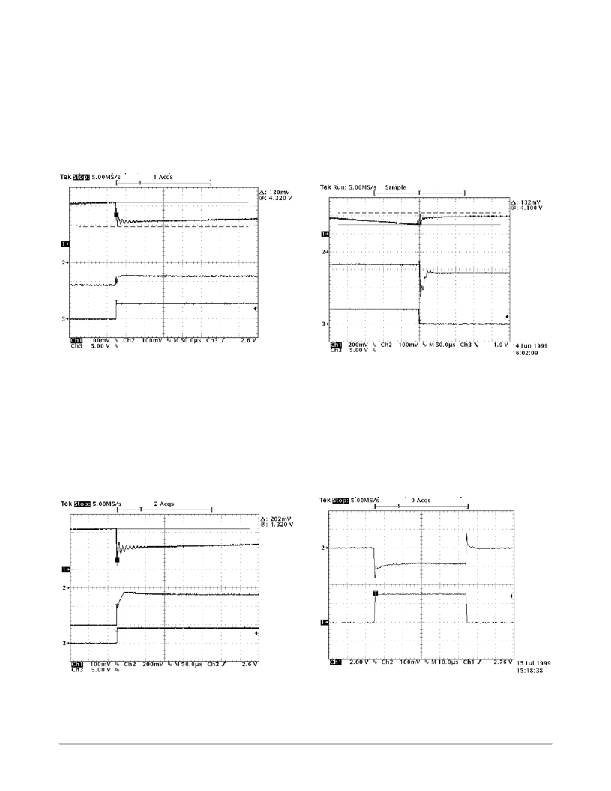

V CC Power ? up (V AUX = 3.3 V). Figure 7 shows the
output response as V CC approaches the select threshold
during a power ? up when V AUX is present (3.3 V). The
output capacitor is already fully charged. When V CC reaches
the select threshold, the in ? rush current is minimal and the
V CC disturbance is only 130 mV. The built ? in hysteresis of
250 mV ensures the regulator remains enabled throughout
the transient.
during a power ? down transition. V AUX of 3.3 V remains
present. When V CC reaches the deselect threshold (4.1 V),
the regulator turns off. This causes a step change reduction
in V CC current resulting in a small voltage increase at the
V CC input. This disturbance is approximately 100 mV and
the built ? in hysteresis of 250 mV ensures the regulator
remains disabled throughout the transient. The output
voltage experiences a disturbance of approximately 100 mV
during the transition.
V OUT offset = 3.3 V, V CC offset = 4.3 V
V OUT offset = 3.3 V, V CC offset = 4.3 V
Figure 7. V CC Power ? up (V AUX = 3.3 V)
V CC Power ? up (V AUX =3.0 V). Figure 8 shows the
output response as V CC approaches the select threshold
during power ? up. The auxiliary voltage, V AUX is set to a low
level of 3.0 V. When V CC reaches the select threshold,
a modest level of in ? rush current is required to further
charge the output capacitor resulting in V CC disturbance of
200 mV. The built ? in hysteresis of 250 mV ensures the
regulator remains enabled throughout the transient.
V OUT offset = 3.3 V, V CC offset = 4.3 V
Figure 8. V CC Power ? up (V AUX = 3.0 V)
Figure 9. V CC Power ? down (V AUX = 3.3 V)
Load Step Response. Figure 10 shows the output
response of the regulator during a step load change from
5 mA to 500 mA (represented on Ch1). An initial transient
overshoot of 50 mV occurs and the output settles to its final
voltage within a few microseconds. The dc voltage
disturbance on the output is approximately 75 mV, which
demonstrates the regulator output impedance of 0.15 W .
V OUT offset = 3.3 V
Figure 10. Load Step Response
V CC Power ? down (V AUX = 3.3V). Figure 9 shows the
output response as V CC approaches the deselect threshold
http://onsemi.com
7
